LIS3DHTR

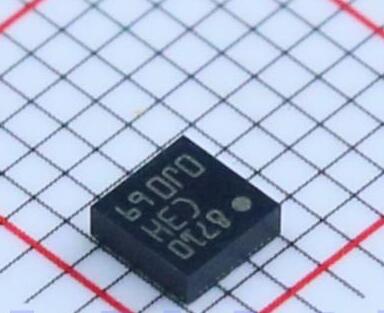

LIS3DHTR: Accelerometer Triple ±2/±4/±8/±16g 1.71V to 3.6V 16-Pin LGA T/R

Package: LGA-16

Mfr. Part#: LIS3DHTR

Mfr.: ST
ROHS PB FREE

Quality: 100% Original

Warranty: 180 days

Buy now

The LIS3DH is an ultra low-power high performance three axes linear accelerometer belonging to the "nano" family, with digital I²C/SPI serial interface standard output. The device features ultra low-power operational modes that allow advanced power saving and smart embedded functions.The LIS3DH has dynamically user selectable full scales of ±2g/±4g/±8g/±16g and it is capable of measuring accelerations with output data rates from 1 Hz to 5 kHz. The self-test capability allows the user to check the functioning of the sensor in the final application. The device may be configured to generate interrupt signals by two independent inertial wake-up/free-fall events as well as by the position of the device itself. Thresholds and timing of interrupt generators are programmable by the end user on the fly. The LIS3DH has an integrated 32-level first in, first out (FIFO) buffer allowing the user to store data for host processor intervention reduction. The LIS3DH is available in small thin plastic land grid array package (LGA) and it is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.

Key Features

  • Wide supply voltage, 1.71 V to 3.6 V
  • Independent IOs supply (1.8 V) and supply voltage compatible
  • Ultra low-power mode consumptiondown to 2μ A
  • ±2g/±4g/±8g/±16g dynamically selectable full-scale
  • I2C/SPI digital output interface
  • 16 bit data output
  • 2 independent programmable interrupt generators for free-fall and motion detection
  • 6D/4D orientation detection
  • Free-fall detection
  • Motion detection
  • Embedded temperature sensor
  • Embedded self-test
  • Embedded 96 levels of 16 bit data output FIFO
  • 10000 g high shock survivability
  • ECOPACK® RoHS and "Green" compliant
Part Status Active
Type Digital
Axis X, Y, Z
Acceleration Range ±2g, 4g, 8g, 16g
Sensitivity (LSB/g) 1000 (±2g) ~ 83 (±16g)
Sensitivity (mV/g) -
Bandwidth 0.5Hz ~ 625Hz
Output Type I²C, SPI
Voltage - Supply 1.71V ~ 3.6V
Features Adjustable Bandwidth, Selectable Scale, Temperature Sensor
Operating Temperature -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 16-VFLGA
Supplier Device Package 16-LGA (3x3)
Please e-mail us zora@semilotec.com for PDF datasheet and quotation.
