MAX232ACSE

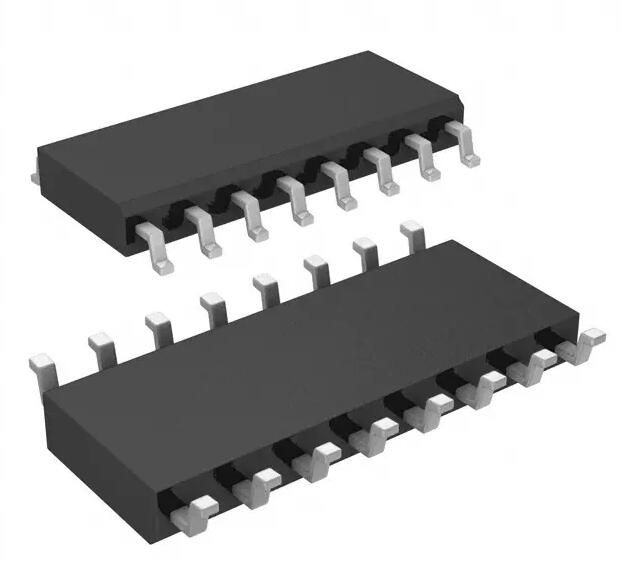

MAX232ACSE: Dual Transmitter/Receiver RS-232 16-Pin SOIC N

Package: SOIC-16

Mfr. Part#: MAX232ACSE

Mfr.: MAXIM

ROHS PB FREE

Quality: 100% Original

Warranty: 180 days

Buy now

The MAX232 family of line drivers/receivers is intended for all EIA/TIA-232E and V.28/V.24 communications interfaces, particularly applications where ±12V is not available. The MAX232 are offered in different packages with temperatures from 0 to +70°C up to -55°C to +125°C.

Key Features

  • Saves Board Space
  • Integrated Charge Pump Circuitry
    • Eliminates the Need for a Bipolar ±12V Supply
    • Enables Single Supply Operation from +5V Supply
  • 5µW Shutdown Mode

Part Status Active
Type Transceiver
Protocol RS232
Number of Drivers/Receivers 2/2
Duplex Full
Receiver Hysteresis 500mV
Data Rate 200kbps
Voltage - Supply 4.5 V ~ 5.5 V
Operating Temperature 0°C ~ 70°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SOIC
Please e-mail us zora@semilotec.com for PDF datasheet and quotation.
