LHI 968-3866 LHI968

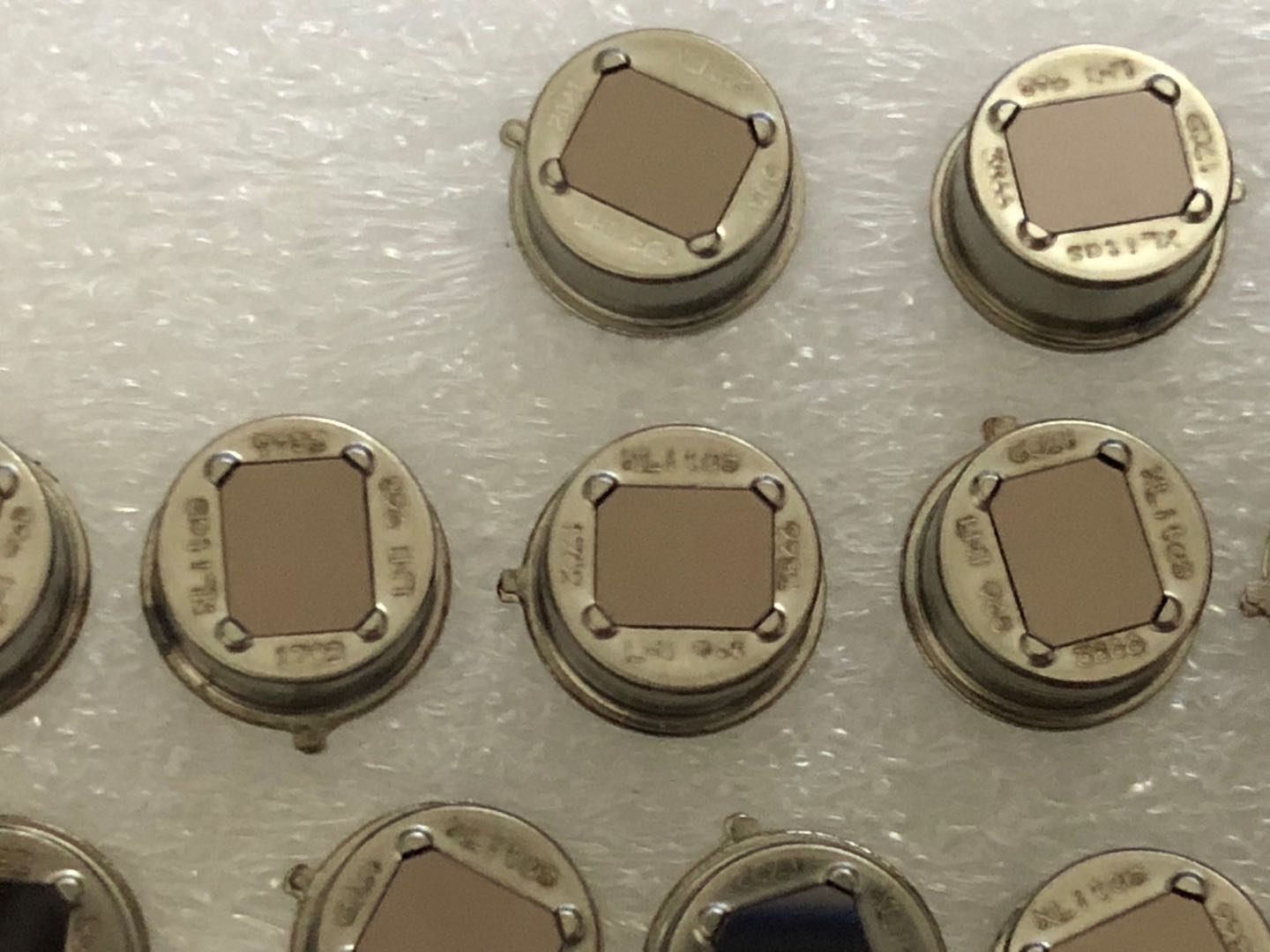

LHI 968: PYROELECTRIC DETECTOR DUAL ELEMENT CONFIGURATION INCLUDING FET AND OPTICAL WINDOW RFI PROTECTION

Package: TO-5

Mfr. Part#: LHI 968

Mfr.: EXCELITAS

Quality: 100% Original

Warranty: 1 year

Buy now

High End Dual Element Detector
Special RFi Protection
Designed for PIR Alarms

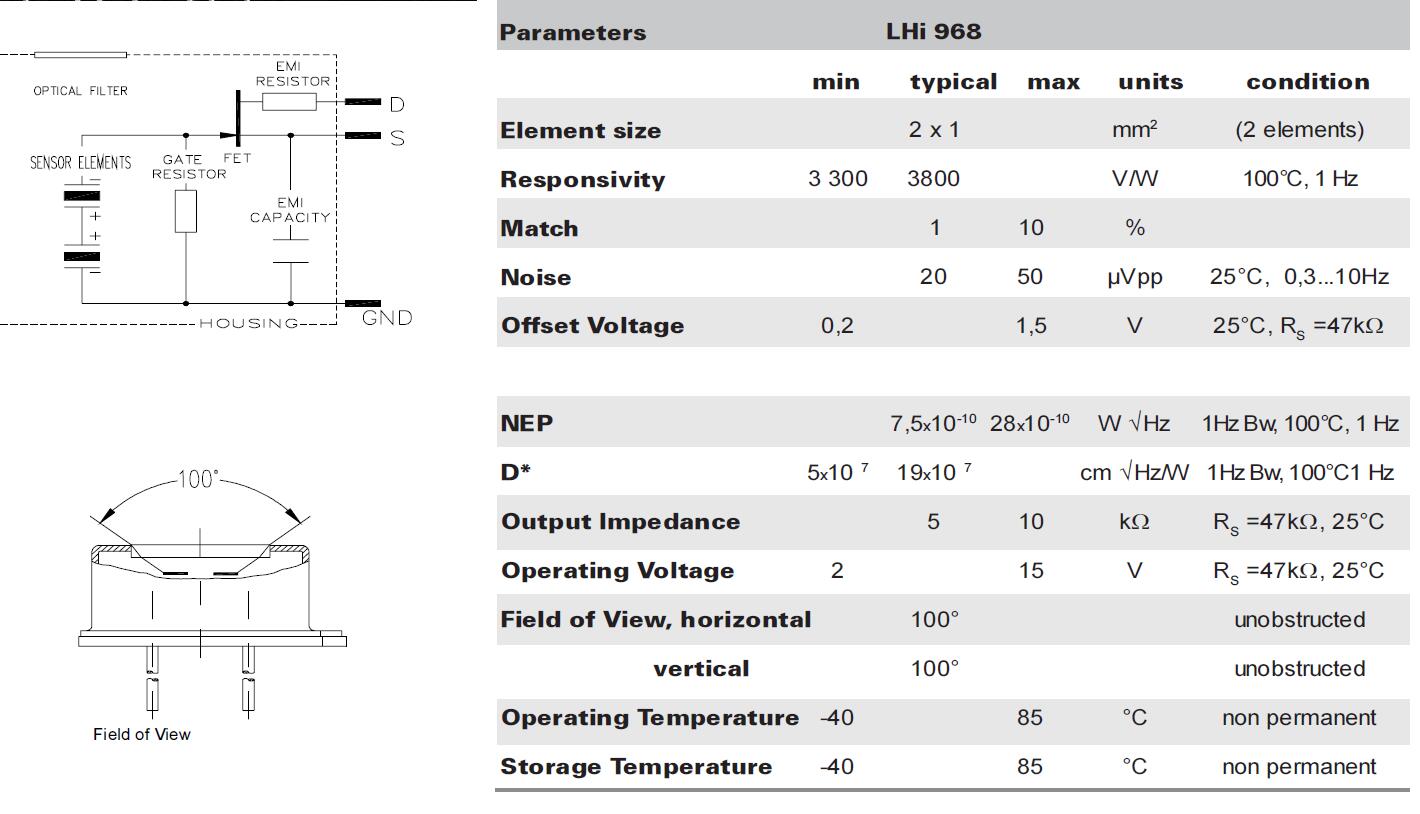

The LHi 968 pyroelectric infrared-detector series is specially designed for
Intrusion Alarm applications . It includes a dual element pyroelectric ceramic
with FET in source follower connection and RF protection by a resistor and
additional capacitor.

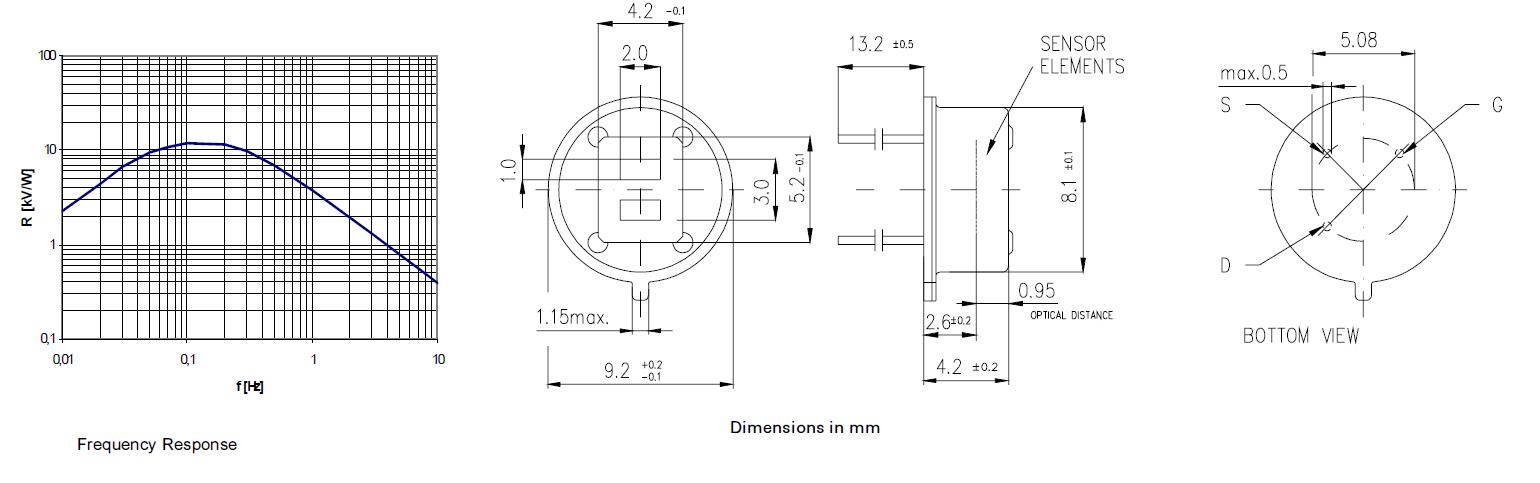

This detector is available in TO-5 housing with an infrared filter which protects
the elements from strong white light disturbance. It offers high responsivity
with excellent common mode performance (match) and low noise.

Manufacturer Excelitas Technologies
Series -
Part Status Active
Sensor Type Motion, Pyroelectric, PIR (Passive Infrared)
Sensing Distance -
Output Type Analog
Voltage - Supply 2V ~ 12V
Trigger Type Internal
Features -
Package / Case TO-205AA, TO-5-3 Metal Can
Operating Temperature -
Detection Pattern -
