STM8S003F3P6

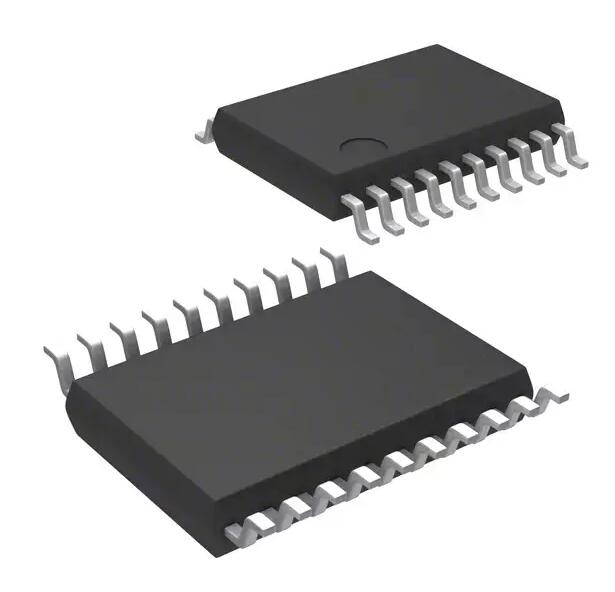

STM8S003F3P6:  MCU 8-bit STM8S STM8 CISC 8KB Flash 3.3V/5V 20-Pin TSSOP Tube

Package: TSSOP-20

Mfr. Part#: STM8S003F3P6

Mfr.: ST

ROHS PB FREE

Quality: 100% Original

Warranty: 180 days

Buy now

The STM8S003F3/K3 value line 8-bit microcontrollers offer 8 Kbyte Flash program memory, plus integrated true data EEPROM. They are referred to as low-density devices in the STM8S microcontroller family reference manual (RM0016).TheSTM8S003F3/K3 value line devices provide the following benefits: performance, robustness and reduced system cost.Device performance and robustness are ensured by true data EEPROM supporting up to 100000 write/erase cycles, advanced core and peripherals made in a state-of-the-art technology at 16 MHz clock frequency, robust I/Os, independent watchdogs with separate clock source, and a clock security system.The system cost is reduced thanks to a high system integration level with internal clock oscillators, watchdog, and brown-out reset.

Key Features

  • Core
  • 16 MHz advanced STM8 core with Harvard architecture and 3-stage pipeline
  • Extended instruction set
  • Memories
  • Program memory: 8 Kbyte Flash memory; data retention 20 years at 55 °C after 100 cycles
  • RAM: 1 Kbyte
  • Data memory: 128 bytes true data EEPROM; endurance up to 100 k write/erase cycles
  • Clock, reset and supply management
  • 2.95 V to 5.5 V operating voltage
  • Flexible clock control, 4 master clock sourcesLow-power crystal resonator oscillatorExternal clock inputInternal, user-trimmable 16 MHz RCInternal low-power 128 kHz RC
  • Clock security system with clock monitor
  • Power managementLow-power modes (wait, active-halt, halt)Switch-off peripheral clocks individuallyPermanently active, low-consumption power-on and power-down reset
  • Interrupt management
  • Nested interrupt controller with 32 interrupts
  • Up to 27 external interrupts on 6 vectors
  • Timers
  • Advanced control timer: 16-bit, 4 CAPCOM channels, 3 complementary outputs, dead-time insertion and flexible synchronization
  • 16-bit general purpose timers, with 3 CAPCOM channels (IC, OC or PWM)
  • 8-bit basic timer with 8-bit prescaler
  • Auto wakeup timer
  • Window and independent watchdog timers
  • Communications interfaces
  • UART with clock output for synchronous operation, SmartCard, IrDA, LIN master mode
  • SPI interface up to 8 Mbit/s
  • I2C interface up to 400 Kbit/s
  • Analog to digital converter (ADC)
  • 10-bit ADC, ± 1 LSB ADC with up to 5 multiplexed channels, scan mode and analog watchdog
  • I/Os
  • Up to 28 I/Os on a 32-pin package including 21 high-sink outputs
  • Highly robust I/O design, immune against current injection
  • Development support
  • Embedded single-wire interface module (SWIM) for fast on-chip programming and non-intrusive debugging

Please e-mail us zora@semilotec.com for PDF datasheet and quotation.
